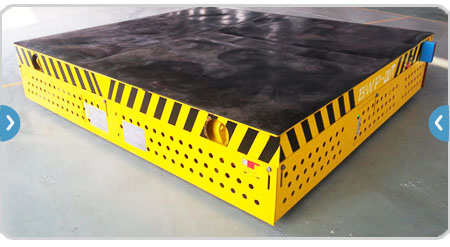

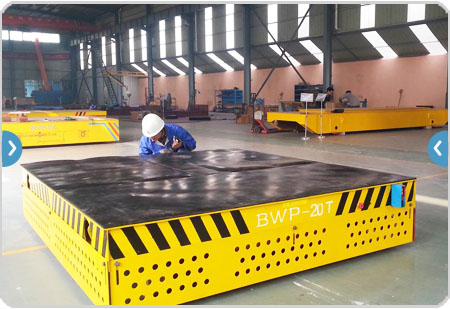

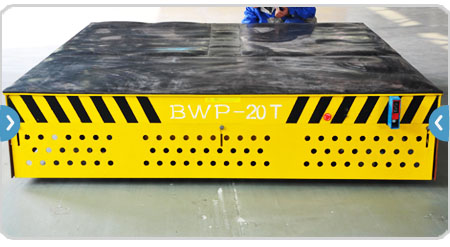

Battery power motorized Steerable transfer cart

Tel.: +8615736919601
Mobile:+86 15736919601
Fax: +86-373-3020456
E-mail:info@perfte.com

Leave Messages

Description Application Parameters Customized

Steerable transfer car apply to 24V, 36V and 48V DC. The storage battery offers the power for traction motor to drag the transfer car to run. It has special steering system. Without cable, it is safe and reliable, not hinder cross transportation, easy to implement remote control and automation.

>> Product presentation

>> Features:

◆ No limit of rail
◆ Steel plate beam structure
◆ Demand ground flatness
◆ Convenient and easy to operate

>> Characters

◆ Max load 50t
◆ Max height 450mm
◆ Automatic stop when meeting obstacle

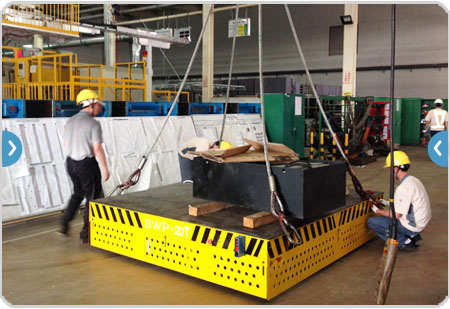

Automobile assembly line, coil handling shop, machinery parts storage line

Rated load(t)	5		15		30			50
Structure of frame	Steel plates welded, beam structure
Ground requirement	Cement ground				Steel plate ground
Table size(mm)	3000*2000		4000*2200		5000*2200			6000*2300
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	mechanical
Wheel diameter(mm)/quantity	300/4	350/4		400/4			400/6		500/6
Wheel quality	Zg55+ hydropur ture
Running speed(m/min)	0-15					0-12
Operation method	With wire or no wire
Battery maintenance	Free of maintenance
Warning equipment	Sound and light
Other functions	Turning light, night light and power display
